Current configuration

Hostname Wireless IP Wireless MAC FastEthernet IP BVI IP Channel Mode Location Config Status Notes
bridge-a 10.1.0.2 0026.cb6a.8db0 10.1.0.1 10.2.0.1 2412 non-root bridge wireless-clients Navar -> GOD OK -
bridge-b 10.1.0.4 0023.5e0b.6b40 10.1.0.3 10.2.0.4 2437 root access point GOD -> Navar OK -
bridge-c 10.1.0.16 0017.e009.5f50 10.1.0.15 10.2.0.16 repeater Wintermark toilet block OK -
bridge-d 10.1.0.18 0017.94a6.9b00 10.1.0.17 10.2.0.18 repeater Workshop OK -
bridge-e 10.1.0.40 001f.9ed3.3fe0 10.1.0.41 10.2.0.40 non-root bridge wireless-clients OK -
bridge-f 10.1.0.42 0013.19a4.9fe0 10.1.0.43 10.2.0.42 root access point GOD -> Wintermark field OK -
Bravo 10.1.0.14 0017.5a60.41e6 10.1.0.13 10.2.0.8 repeater Hall of Worlds OK -
Charlie 10.1.0.11 0014.693c.6160 10.1.0.12 10.2.0.11 2447 root GOD OK -
Delta 10.1.0.10 0019.e88c.77ac 10.1.0.9 10.2.0.6 2472 repeater Tavern OK -
Echo 10.1.0.8 001a.6c17.93b7 10.1.0.7 10.2.0.7 Not Set repeater Flakey -
Foxtrot 10.1.0.6 10.1.0.5 10.2.0.5 repeater Sentinel gate OK -
Golf 10.1.0.31 0017.e0ba.66f0 10.1.0.30 10.2.0.30 2447 root access-point Monster OK -
Hotel 10.1.0.20 0013.80aa.7a70 10.1.0.19 10.2.0.19 repeater MC Tent OK -
India 10.1.0.44 000d.29e1.60d9 10.1.0.45 10.2.0.44 Not Set repeater OK Dot11Radio1 fucked, 0 not working as repeater
Juliet 10.1.0.46 000d.2917.ebee 10.1.0.47 10.2.0.46 Not Set root Server room OK Dot11Radio 0 not fitted
Kilo 10.1.0.48 000d.bc7e.716a 10.1.0.49 10.2.0.48 Not Set root Navar woods OK -
Lima 10.1.0.52 10.1.0.53 10.2.0.52 Not Set repeater/root GOD OK Dot11Radio1 configured as PD_PLAYER open wifi
Mike 10.1.0.54 000f.908b.79e0/000d.2917.ea23 10.1.0.55 10.2.0.54 Not Set root Plot Cave OK -
November 10.1.0.50 000d.2917.eba6 10.1.0.51 10.2.0.50 Not Set root OK Dot11Radio 0 not fitted
switch-core 10.1.0.201 Server room OK

Capabilities

These radios operate in the 2.4Ghz or 5 Ghz microwave band, and support 802.11b/g wifi connections. We have many units:

 12(?) x omnidirectional, indoor units, two with standard antennas, two with (high-gain?) antennas.
    (Aironet 1200 series)

Some of the 1200 series have two radios installed: The 2.4-GHz radio is radio 0, and the 5-GHz radio is radio 1.

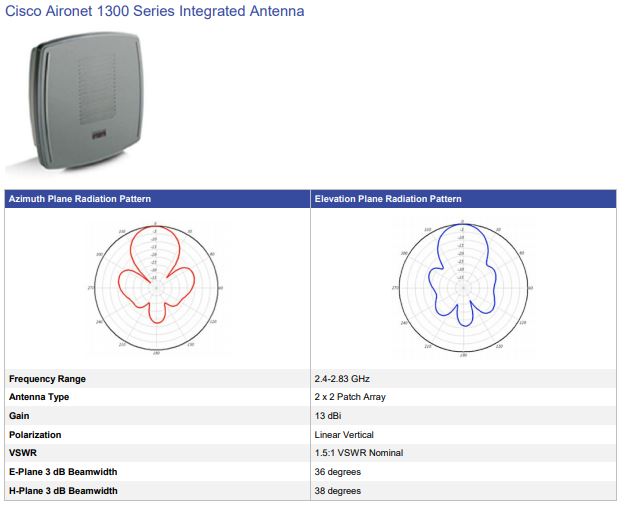

 6x weather-proofed point-to-point units with highly-directional integrated antennas,
    with separate (indoor) breakout boxes.
    (Aironet 1300 series)

Controlling the units

These wireless base-stations are sophisticated computers in their own right. They run the Cisco IOS operating system: specifically, version 12.3. By default, they can be controlled via a serial console, using the special cyan RJ45-DB9 serial cable provided or the cyan USB-serial cables.

They can also be controlled via telnet and have a web interface which is occasionally useful. By default, configured to use DHCP to acquire their own IP address, but we have over-ridden this for obvious reasons (it's hard to telnet to a device when you don't know what its address is ...).

Connecting

Windows XP

Use Hyperterminal to connect to a unit:

 -> Use 9600 baud, no parity, 1 stop bit, and disable hardware flow control.

OSX/Linux

There should be a USB/Serial cable in the box. Clive will also have one in his bag of stuff. But if you lose his, it will be painful ...

Find the port number in terminal:

$ ls -ltr /dev/*usb*
crw-rw-rw-  1 root  wheel   21,   2  7 Apr 16:33 /dev/tty.usbserial-AH0668GD
crw-rw-rw-  1 root  wheel   21,   3  7 Apr 16:33 /dev/cu.usbserial-AH0668GD

or

matt@merple:~> ls -ltr /dev/ | grep -i usb
crw-rw---- 1 root dialout 188, 0 Sep 13 21:11 /dev/ttyUSB0
matt@merple:~>

You can use screen to connect:

$ screen /dev/tty.usbserial-AH0668GD 9600

Personally, Clive hates using screen, so has downloaded and installed a small cli serial emulator. If you're on a machine it's been installed on, having found the port you want, you connect using:

serial /dev/tty.usbserial-AH0668GD 9600

Log in

If you've got things right, then if you have the cable plugged in when you turn a wireless base-unit on, you should see boot-time messages start to scroll past for about a minute after power-on.

Press <ENTER> when prompted to bring up control menu.

Prompt is displayed as: ap> -- or, if the device has been given a different hostname, either manually or via DHCP, then it will appear as: hostname>

Pressing '?' will display a list of commands. <TAB> will auto-complete unambiguous partial commands.

The access point default username is 'Cisco' and the default password is 'Cisco'.

Configuring units

Common

  • Enter admin mode
    • Gain privileged access: enable
    • The default username and password is 'Cisco'.
  • Enter config mode.
    • Enter (configuration) context:
   configure terminal
  • Set the local hostname:
    • Set hostname:
   hostname NEWHOSTNAME

Note: this will change the default prompt from 'ap' to the hostname you specify.

  • Configure AP to use a broadcast NTP time signal:
    • Enable the SNTP client, to listen to the first broadcast signal:
   sntp broadcast client

  • Configure AP to maintain a network map:
    • Enable network-map generation
   dot11 network-map 1
  • Configure AP with the PDCREW wireless network details:
    • Mint the new SSID:
      dot11 ssid PDCREW
    • Set the shared secret to connect to this AP:
   authentication open
   authentication key-management wpa
   wpa-psk ascii PASSWORD

NOTE: The WPA-PSK has to be 8 characters or longer. You know what the password is ...

  • Allow to be used as an infrastructure ssid
   infrastructure-ssid optional
  • Set the SSID to be announced:
   guest-mode
  • Exit from SSID sub-mode:
   exit
  • Turn the radio on, and add the PDCREW SSID to it:
    • Select a radio interface to add the SSID to:
      interface dot11radio 0
    • Tell the wireless system to use correct regional settings:
      world-mode dot11d country-code GB outdoor
    • Set the radio to optimise for range (as opposed to speed)
      speed range
    • Set the power settings to locally-permitted maximums.
      power local cck maximum
      power local ofdm maximum
    • Turn the radio on:
      no shutdown
    • Configure encryption mode ciphers:
      encryption mode ciphers tkip
    • enable extensions:
      dot11 extension aironet
    • Add the SSID to this radio:
      ssid PDCREW
    • Set the ip address
      ip address 10.1.0.x 255.0.0.0
    • Assign the interface to the correct bridge group:
      bridge-group 1
    • Ensure STP is enabled:
      no bridge-group 1 spanning-disabled
    • Exit SSID configuration mode:
      exit
  • Configure the ethernet port
    • select interface
      interface FastEthernet 0
    • Set the ip address
      ip address 10.1.0.x 255.0.0.0
    • Assign the interface to the correct bridge group:
      bridge-group 1
    • Ensure STP is enabled:
      no bridge-group 1 spanning-disabled
    • Exit ethernet configuration mode:
      exit
  • Configure the BVI port
    • select interface
      interface BVI 1
    • Set the ip address
      ip address 10.2.0.x 255.0.0.0
    • Exit BVI configuration mode: exit
  • Configure the bridge group
    • Enable STP for the bridge group
      bridge 1 protocol ieee
  • Exit config mode:
     exit
  • Save your work
  copy running-config startup-config

Root bridge

  • Configure radio to operation in a root bridge role:
    • Enable configuration mode:
      configure terminal
    • Select 2.4Ghz radio:
      interface dot11radio 0
    • Set channel :
      channel x
    • Set role:
      station-role root bridge wireless-clients

Non-root bridge

  • Configure radio to operation in a non-root bridge role:
    • Select 2.4Ghz radio:
      interface dot11radio 0
    • Set role:
      station-role non-root bridge wireless-clients

Field/Tent AP

  • Make sure the radio is in root mode:
    • Select 2.4Ghz radio:
      interface dot11radio 0
    • Set channel :
      channel x
    • Set role:
      station-role non-root bridge wireless-clients

Repeater

  • Configure radio to operation in a repeater role:
    • Select 2.4Ghz radio:
      interface dot11radio 0
    • Set role:
      station-role repeater

Understanding current state

  • Review the current SSID list:
show running-config ssid PDCREW

You should see something like:

dot11 ssid PDCREW
   authentication open
   authentication key-management wpa
   guest-mode
   wpa-psk ascii 7 140716081E013D7D76
end
  • Show the network-map:
show dot11 network-map
  • Show live configuration:
show running-config

  • Commit live configuration as the new default:
copy running-config startup-config
  • Show neighbouring Cisco equipment:
show cdp neighbors [detail]
  • Show interface status:
sh ip interface brief
  • Get an idea of your network map:
bridge-e#sh dot11 associations

802.11 Client Stations on Dot11Radio0:

SSID [PDCREW] :

MAC Address    IP address      Device        Name            Parent         State
000d.29e1.60d9 10.2.0.44       Repeater      india           000d.bc7e.716a Assoc
000d.bc7e.716a 10.2.0.48       ap1200-Rptr   kilo            self           Assoc
  • Spanning tree info:
    • General info:
      show spanning-tree
    • Displays status and configuration of this bridge:
      show spanning-tree bridge
    • Displays a detailed summary of information on the spanning-tree root (not the root bridge, the master of the spanning tree):
      show spanning-tree root
  • Enabling logging (if connected via telnet or ssh)
     terminal monitor

Removing an ssid

Some images set up the _tsunami_ ssid on factory reset, to remove it: (from configure mode)

ap(config)#interface dot11Radio 0
ap(config-if)#no ssid tsunami
ap(config-if)#exit
// if fitted repeat for dot11Radio 1
ap(config)#no dot11 ssid tsunami
ap(config)#exit

Factory reset

1200 series

To return the wireless base-stations to factory settings, power off the device, then -- while holding the 'mode' button down -- power the wireless device back up. Continue to hold the 'mode' button down for a few seconds, then release.

1300 series

If you can login (enable):

  • Enter erase nvram to erase all NVRAM files including the startup configuration.
  • Enter Y when the following CLI message appears: Erasing the nvram filesystem will remove all configuration files! Continue? [confirm].
  • Enter reload when the following CLI message appears: Erase of nvram: complete. This command reloads the operating system.
  • Enter Y when the following CLI message appears: Proceed with reload? [confirm].

If you can't login, try really hard to log in. Otherwise:

  • Open the CLI with a Telnet session or a connection to the bridge console port.
  • Reboot the bridge by removing and reapplying power.
  • Allow the bridge to boot until the command prompt appears and the bridge begins to inflate the image.
  • Press ESC when you see lines that are similar to these on the CLI:
Loading "flash:/c1310-k9kw-7mx.v122_15_ja.200040314-k9w7-mx.v122_15_ja.20040314"
...#############################################################################

Note: In order to access the boot loader, you must press ESC twice. But this action depends on the terminal-emulation software that you use. Messages that are similar to these appear:

Error loading "flash:/c1310-k9kw-7mx.v122_15_ja.200040314-k9w7-mx.v122_15_
ja.20040314"
Interrupt within 5 seconds to abort boot process.
Boot process terminated.
The system is unable to boot automatically. The BOOT environment variable needs to
be set to a bootable image.
C1310 Boot Loader (C1310-BOOT-M), Version 12.2 [BLD-v122_15-ja_throttle.20040314 100]
bridge:
  • At the bridge: prompt, issue the dir flash: command in order to view a directory of the Flash file system. The directory is similar to this directory:
bridge: dir flash:

Directory of flash:/

2	-rwx		0		<date>	env_vars
5	drwx		384		<date>	C1310-k9w7-mx.v133_15_JA.20040314
3	-rwx		1128		<date>	config.txt
4	-rwx		5		<date>	private-config

3693568 bytes available (4047872 bytes used)
bridge:
  • Delete or rename the files config.txt and env_vars, and reboot the bridge. Note: Do not forget the / character before the filenames.
bridge: delete flash:/config.txt
Are you sure you want to delete flash:/config.txt (y/n)?y
File "flash:/config.txt" deleted

bridge: delete flash:/env_vars
Are you sure you want to delete "flash:/env_vars" (y/n)?y
File "flash:/env_vars" deleted
  • Issue the boot command in order to reboot the bridge at the bridge: prompt, or simply power cycle the bridge.

Updating the operating system --- Here be dragons

Some problems Clive has been having with some of the devices have been resolved by updating to a more recent version of IOS. (Yes, Cisco also call their OS IOS. In fairness, they were there first: “Cisco has agreed to license the iOS trademark to Apple for use as the name of Apple’s operating system for iPhone, iPod touch and iPad. The license is for use of the trademark only and not for any technology.”)

There should be a running tftp server on favog. It should even have one or more IOS images on it. It'll look like this (once Clive has copied it from his local server to favog, anyway):

 ls -ls /srv/tftpboot/
total 5284
5284 -rw-r--r-- 1 tftp tftp 5408256 Apr 23 19:41 c1310-k9w7-mx.124-10b.JA1.tar

Steps

Simple in principle:

  1. Find an equivalent piece of hardware that is working and has the feature
  2. Get both devices on the network, use an ethernet cable for preference
  3. Upload its current image, if it's not already there
  4. Download it on the 'broken' one

Upload an image

First, find out what image you have. It'll be the directory with long name starting with your hardware's part number, eg:

bridge-e#sh flash

Directory of flash:/

    2  -rwx        2072   Mar 1 2002 00:11:18 +00:00  private-multiple-fs
    3  -rwx        1261   Mar 1 2002 00:11:18 +00:00  config.txt
    4  drwx         256   Jan 1 1970 00:06:24 +00:00  c1310-k9w7-mx.124-10b.JA1
  153  -rwx          70   Mar 1 2002 00:02:33 +00:00  env_vars
  155  -rwx           5   Mar 1 2002 00:11:18 +00:00  private-config

7741440 bytes total (2395648 bytes free)

In this case, c1310-k9w7-mx.124-10b.JA1

Copying it is actually fairly easy:

bridge-e#archive upload-sw tftp://10.0.0.18/[the directory name from above].tar

Download an image =

Again, relatively easy:

bridge-f#archive download-sw tftp://10.0.0.18/[the directory name from above].tar

You'll see something along the lines of:

examining image...
Loading c1310-k9w7-mx.124-10b.JA1.tar from 192.168.0.20 (via BVI1): !
extracting info (275 bytes)!!!!!!!!!!!!!!!!!
[OK - 5408256 bytes]

Image info:
    Version Suffix: k9w7-.124-10b.JA1
    Image Name: c1310-k9w7-mx.124-10b.JA1
    Version Directory: c1310-k9w7-mx.124-10b.JA1
    Ios Image Size: 4669952
    Total Image Size: 5407232
    Image Feature: UNKNOWN
    Image Family: C1310
    Wireless Switch Management Version: 1.0

followed by a lot of progress information which may well include wiping the original image out.

Once this is done, restart it. And hope that you've not bricked it ...

Old bits from early experiments, probably not really worth keeping, but just might be

Aquarion's notes, essentially

==

Wireless Topology


Suggested wireless topology; at this point, only units 1-3 have been configured.

                      (- ~ ~ ~ ~ ~ -)     v ~ ~ v ~ ~ v ~ ~ v
 [ GOD network ] ---- |             | --- |     |     |     |
                      RB           NRB    AP    R     R     R
                      #1            #2    #3    #4    #5    #6
    RB : Root-bridge
    NRB: Non-root bridge
    AP : Root access point
    R  : Wireless repeater.
                                      Wireless MAC       Ethernet MAC		channel
    #1  -- bridge-a	10.1.0.2 & 1   00:26:cb:6a:8d:b0  88:43:e1:d1:fd:ac     1	\ 1300-series
    #2  -- bridge-b    10.1.0.4 & 3   00:23:5e:0b:6b:40  00:23:5e:99:56:02     1	/
    #3  -- field-ap    10.1.0.6 & 5   00:14:69:2d:4a:10  00:14:6a:40:44:49     6	\
    #4  -- repeater-1  10.1.0.8 & 7                                            11	  1200-series
    #5  -- repeater-2  10.1.0.10 & 9   		  00:19:E8:8C:77:AC     13
    #6  -- repeater-3  10.1.0.12 & 11              	  00:14:69:ee:3b:ab     8                      	/
    #7  -- repeater-4  10.1.0.13                         00:13:80:ec:bb:b8	5


These are only suggested IPs; at present, they are all using DHCP to establish their own IP, and these have not yet been configured in the AD.

Ideally, the repeaters will also be configured such that wired devices attached to them will be bridged onto the crew network. (Note: this has security implications - we don't want players to be able to do this!)

[ In practice, this appears not to be supported? ]

Performance


At Odyssey E1, 2013, bridge-[a/b] and the field-ap were all configured and test-deployed:

 * bridge-a was propped up on a desk in GOD
 * bridge-b was propped up on a box outside the bar, in the ~middle of the IC field.

This was an initial test, but it proved to be unexpectedly successful. Despite there being in the way:

 * Most of GOD
 * A wet hedgerow
 * Several (dampened) tents
 * A number of people milling about
 * A fair distance

... a solid signal could be established between the two bridge units, despite not having done any careful alignment. (Perhaps we were just lucky?)

'show dot11 statistics client-traffic' shows:

27-0026.cb6a.8db0 pak in 12503 bytes in 2295602 pak out 4385 bytes out 693295

     dup 0 decrpyt err 0 mic mismatch 0 mic miss 0
     tx retries 1159 data retries 1158 rts retries 1
     signal strength 74 signal quality 18

Radiation Patterns
